| OVERVIEW |
|
|
|
|
|
|
|
| Name |

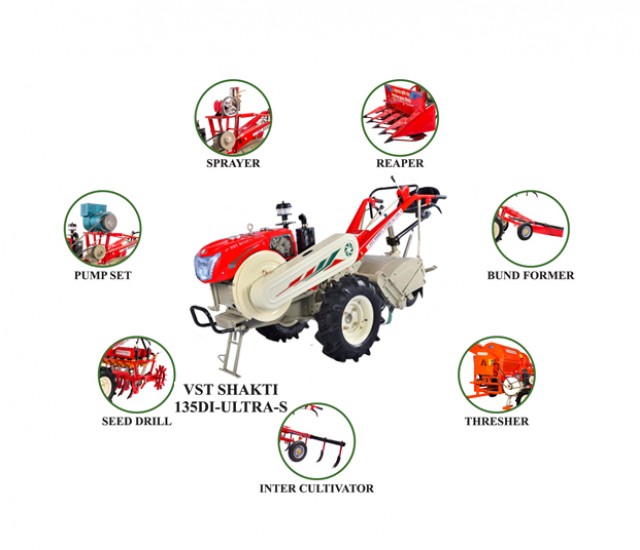

VST Shakti 135 DI ULTRA - Power Tiller |
|
|
|
| Overall Dimensions (L x W x H) |
2370 x 850 x 1270 mm |
|
|
|
|
| Weight (Engine & Transmission with Rotary) |
440 Kg |
|
|
|
|
|
|
| ENGINE |
|
|
|
|
|
|
|
| Model |
VST Shakti 135 DI |
|
|
|
|
|
| Type |
Horizontal 4 stroke single cylinder water cooled diesel engine OHV |
| Combustion Chamber |
Direct injection (DI) |
|
|
|
|
|
| Bore x Stroke |
95 mm x 95 mm |
|
|
|
|
|
| Displacement |
673 cc |
|
|
|
|
|
|
| Compression Ratio |
18:01 |
|
|
|
|
|
|
| Max. Torque |
4.2 kg-m/1600 rpm |
|
|
|
|
|
| Max.HP as per IS 13539 1996 |
13.0 HP @ 2400 rpm |
|
|
|
|
|
| SFC (Specific Fuel Cons) |
190g/hp/hr |
|
|
|
|
|
| Governor System |
Mechanical, Centrifugal type |
|
|
|
|
| Cooling System |
Condenser Type Thermo siphon cooling system |
|
|
| Starting System |
Hand cranking |
|
|
|
|
|
| Lighting System |
12 Volts/35 Watts |
|
|
|
|
|
| Std. Pulley (DIA) |
100 mm/optional 120 mm |
|
|
|
|
| Dry Weight |
125 Kgs |
|
|
|
|
|
|
| FUEL SYSTEM |
|
|
|
|
|
|
|
| Fuel |
High speed diesel |
|
|
|
|
|
| Fuel Tank Capacity |
11 ltrs |
|
|
|
|
|
|
| Nozzle |
Multihole (5) |
|
|
|
|
|
| LUBRICATING SYSTEM |
|
|
|
|
|
|
| Oil Sump Capacity |
2.8 ltrs |
|
|
|
|
|
| Type |
Forced feed Type Trochoid pump |
|
|
|
|
|
| Air Cleane |
Multistage, oil bath type |
|
|
|
|
|
| TRANSMISSION |
|
|
|
|
|
|
| Model |
CT 85 |
|
|
|
|
|
| Type |
Side drive rotary transmission |
|
|
|
|
|
| Forward |
6 speeds |
|
|
|
|
|
| Reverse |
2 speeds |
|
|
|
|
|
| Rotary |
2 speeds (optional 4 speeds) |
|
|
|
|
|
| Clutch |
Multiple plate dry disc type |
|
|
|
|
|
| Brake |
Hand operated internal expanding metallic shoe type |
|
|
|
|
|
| Weight |
n/a |
|
|
|
|
|
| PERFORMANCE |
|
|
|
|
|
|
| Tilling Width |
600 mm (maximum) |
|
|
|
|
|
| No. of Tynes |
18 |
|
|
|
|
|
| Tilling Depth |
150 mm (maximum) |
|
|
|
|
|
| Plough Depth |
220 mm (maximum) |
|
|
|
|
|
| GEAR |
SPEED (Kmph) |
|
|
|
|
| FORWARD |
STANDARD PULLEY |
OPTIONAL PULLEY |
|
|
|
|
| 1 L |
1.8 |
1.8 |
|
|
|
|
| 2 |
2.18 |
2.65 |
|
|
|
|
| 3 |
3.43 |
4.19 |
|
|
|
|
| 4 H |
5.26 |
6.47 |
|
|
|
|
| 5 |
7.72 |
9.54 |
|
|
|
|
| 6 |
12.18 |
14.99 |
|
|
|
|
| REVERSE |
|
|
|
|
|
|
| 1 L |
1.28 |
1.57 |
|
|
|
|
| 2 H |
4.56 |
5.63 |
|
|
|
|
