Features
Brand :
STANDARD
Model Name :
STANDARD COMBINE HARVESTER TSC-513
Implement Type :
Category :
Implement Power :
Description

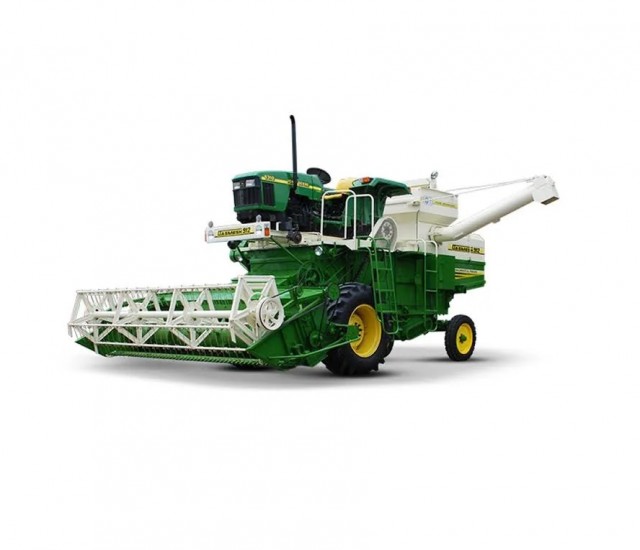

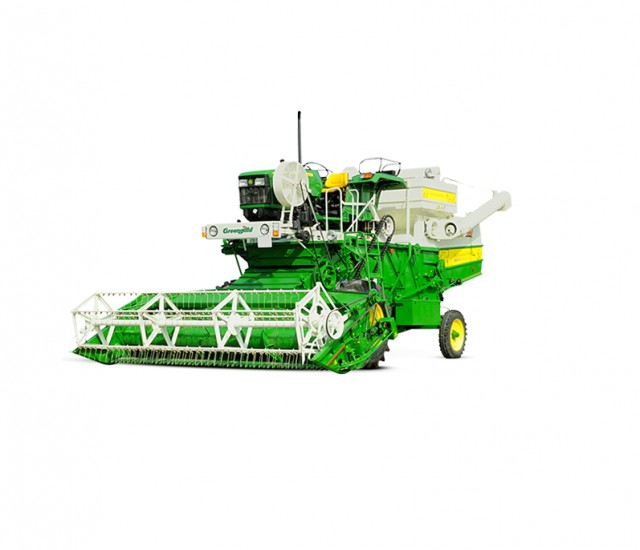

STANDARD COMBINE HARVESTER TSC-513

Brand Standard
Model Name/Number TSC513
Usage/Application Agriculture
Capacity Gear Box : 3.5 Litre Oil Grain Tanks (kgs) Cu/m : (1050) 1.45
Tractor Power Required (hp) Suitable With Any 55/60 HP Tractor
Clutch Type Type : Single, Heavy Duty Dry, 260.50 mm (Diameter)
Straw Walker Nos. 05 Area (Sq. Mt.) 3.85
Country of Origin Made in India
Cutter Bar 35-110 mm (Height), 3655 mm (Width)
Threshing Drum 650 - 865 mm (Height), 1110 mm (width)
Blower 4 (Blades), 480 mm (Diameter), 1010 mm (Width)
Overall Dimension 7950 X 3990 X 3454 mm (L x W x H)
